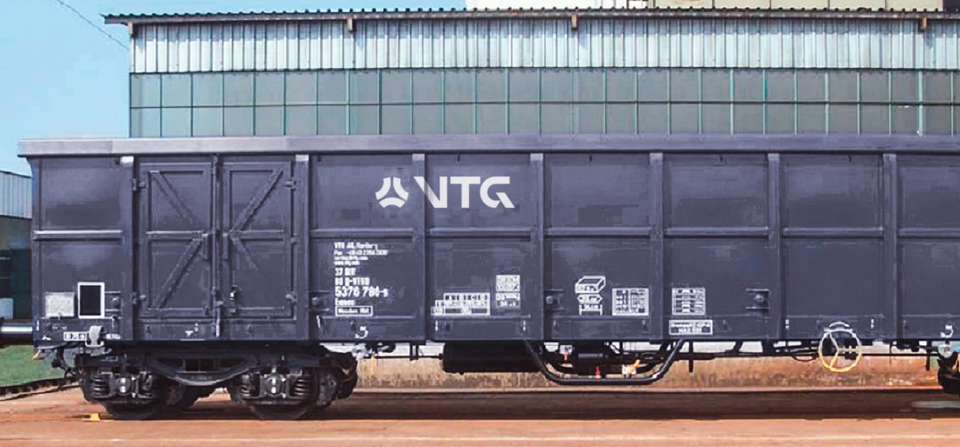

Eanos | B41.083D
Box wagon
- Light to heavy loads such as beets, coal, ores, sand, scrap and wood waste.
- Lugs and fastening hooks allow tarpaulins and wire mesh covers to be affixed.
- The wagon has a T-piece to enable oily rainwater to be discharged in an environmentally friendly manner.
Industry
DisposalLoads
Energy productsCoalBeetsScrapTechnical data

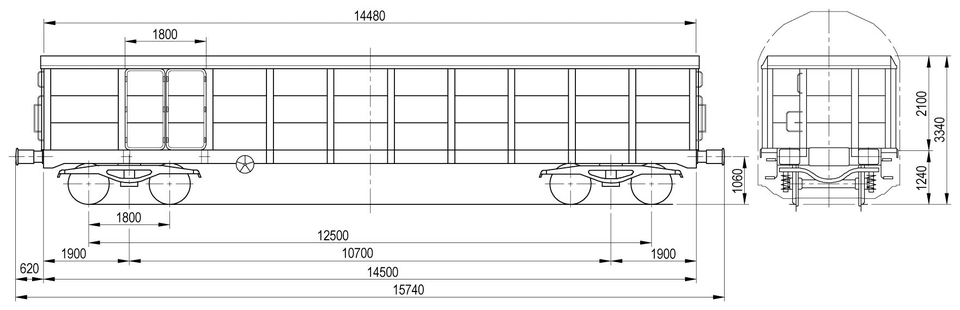

Specifications B41.083D
| Axle load | 22.5 t |
|---|---|
| Brake | KE-GP 16“ |
| Brake block category | LL brake block |
| Cleaning doors | 2 double doors (one on either side, diagonally opposite); Thickness = 6 mm top, 7 mm bottom; 1,800 mm x 1,800 mm |
| Clearance: outer wheelsets | 12,500 mm |
| Drawgear & static tractive force | Split, 850 kN |
| Fastening hooks | 20 (outside/at top) |
| Floor thickness | 9 mm |
| Inner loading length | Approx. 14,480 mm |
| Load area | Approx. 39 m² |
| Loading width, interior | 2,720 mm |
| Lugs | 16 (inside) |
| Material, body | Carbon steel (S355J2+N) |
| min. curve radius | 35 m |
| Nominal volume | Approx. 83 m³ |
| Tare weight | Approx. 26 t |
| Wall thickness (ends) | 6 mm top/7 mm bottom |
| Wall thickness (sides) | 6 mm top/7 mm bottom |
