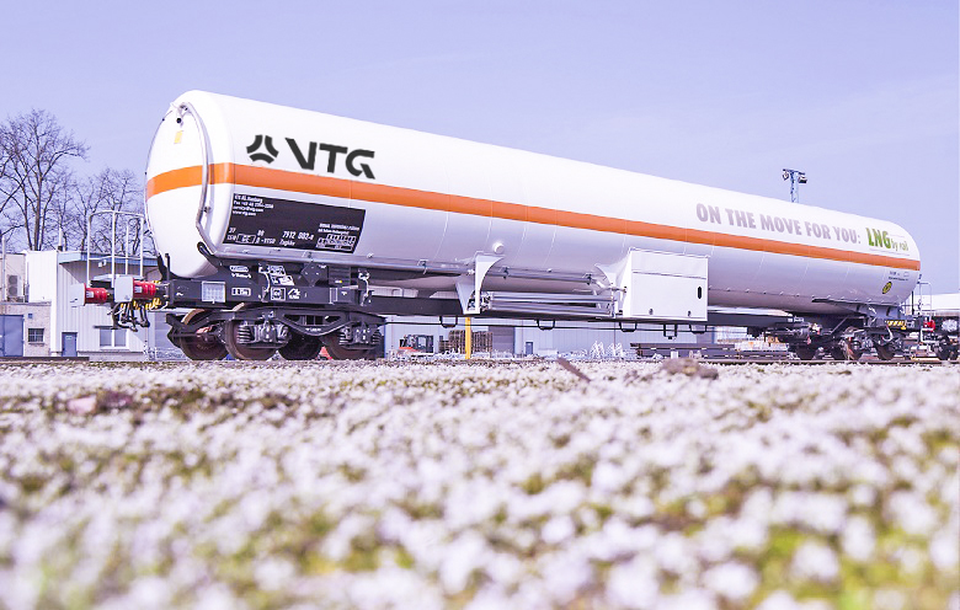

Cryogenic rail tank car

Optimized for the transportation of liquified natural gas (LNG; methane, cryogenically liquefied).
Special suspension and storage technology for the inner tank inside the outer tank to guarantee the required safety and energy efficiency when transporting LNG at temperatures as low as -162°C.
Ready for transportation in Spain: Buffer head width 650 mm, distance between buffer centers 1,850 mm, special preparations for lifting the wagon with the bogie frame.
25 t axles with noise reduction coating. Safety device to prevent excess pressure and overfilling and telematics system to prepare for pressure monitoring

Industry

Gases

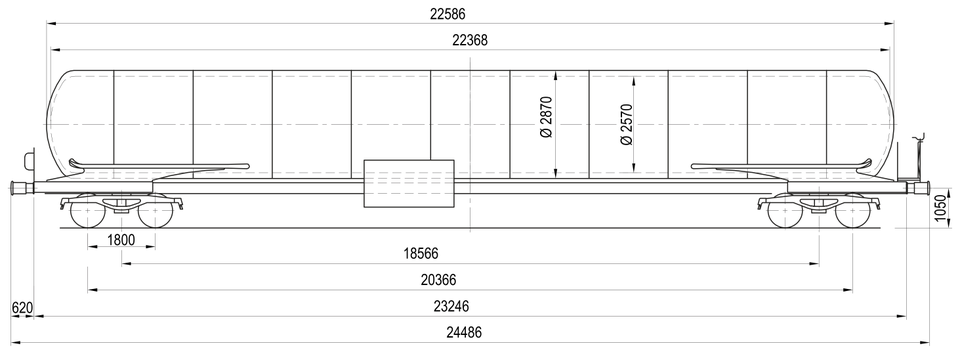

Technical data

Specifications G91.111D

Axle load	22.5 t
Brake	KE-GP-A 12"
Brake block category	K brake block
Clearance: outer wheelsets	20,366 mm
Design temperature	-196 / +50°C
Min. curve radius	75 m
Nominal volume	approx. 111 m³
Safety equipment	25 t axles with noise reduction coating; Safety device to prevent excess pressure and overfilling; Telematics system to prepare for pressure monitoring
Tank code	R10,4BN
Tank material	Outside: Carbon steel (S355NL2); Inside: Stainless steel
Tare weight	approx. 45 t
Thermal insulation	Vacuum between inner and outer tank; Inner tank insulated
