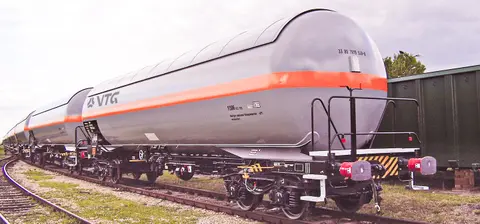

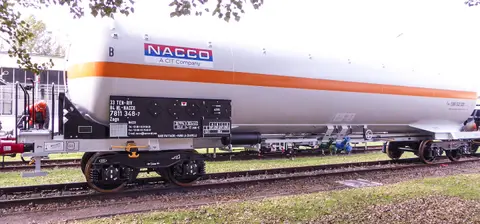

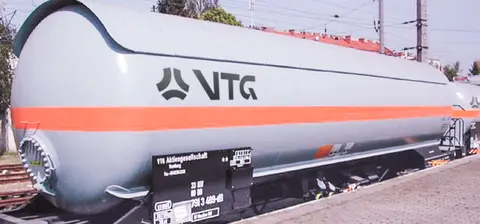

Ammonia tank wagon
4 variants
Specialized tank wagons for the transport of liquid ammonia, with capacities of 90 to 110 cubic meters. The cars feature C or D load limits and in some cases insulation with a sun protection roof to safely transport the hazardous material ammonia.
Industry
GasesLoads
ButanePropaneLPGMixture AMixture A0Mixture A1Mixture CIsobuteneButadieneAmmonia4
Variants
1
Industry
Comparison of variants
Which variant best suits your transportation needs?
A direct comparison of volume, axle load, compliance, and optional equipment. Click on a variant to view the full details page.
:quality(75)) | :quality(75)) | :quality(75)) | :quality(75)) | |
|---|---|---|---|---|
| Nominal volume | Approx. 95 m³ | approx. 104 m³ | approx. 102 m³ | approx. 106 m³ |
| Tare weight | Approx. 31 t | approx. 35 t | approx. 36.5 t | approx. 34.3 t |
| Tank code | P29BH | P26BH | P29BH | P26BH |
| Tank material | Carbon steel (P460NL2) | Carbon steel | Carbon steel | Carbon steel (P400) |
| Axle load | 20 t | 22.5 t | 22.5 t | 22.5 t |
| Brake | KE-GP 16" | KE 2c SLc 16" | KE-GP-(K) | KE-GP 12" |
| Brake block category | LL brake block | LL brake block | K-blocks | K brake block |
| Clearance: outer wheelsets | Approx. 12,860 mm | approx. 12,260 mm | approx. 13,290 mm | approx. 12,990 mm |
| Design temperature | -40°C / +45°C | -40°C / +45°C | -40°C / +50°C | -40°C / +50°C |
| Min. curve radius | 35 m — all variants | |||
| Thermal insulation | – | Sun-shield | – | Sun-shield |
| Hand brake | – | – | – | Ground operated hand brake |
| Safety equipment | – | – | – | 25 t axles with max. axle load of 22.5 t; Optional anti climbing system (ACS) for an additional charge |
| To detail page | View wagon | View wagon | View wagon | View wagon |
