Rbs | F43.251D
Flat wagon
- For the transportation of long steel products and pipes.
Industry
SteelLoads
Flat steelLong steelRound steelTubesTechnical data

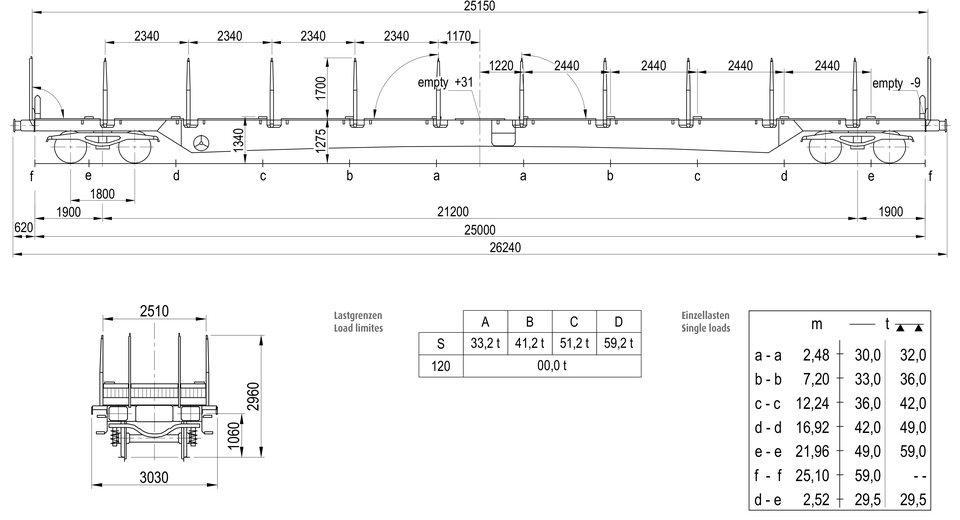

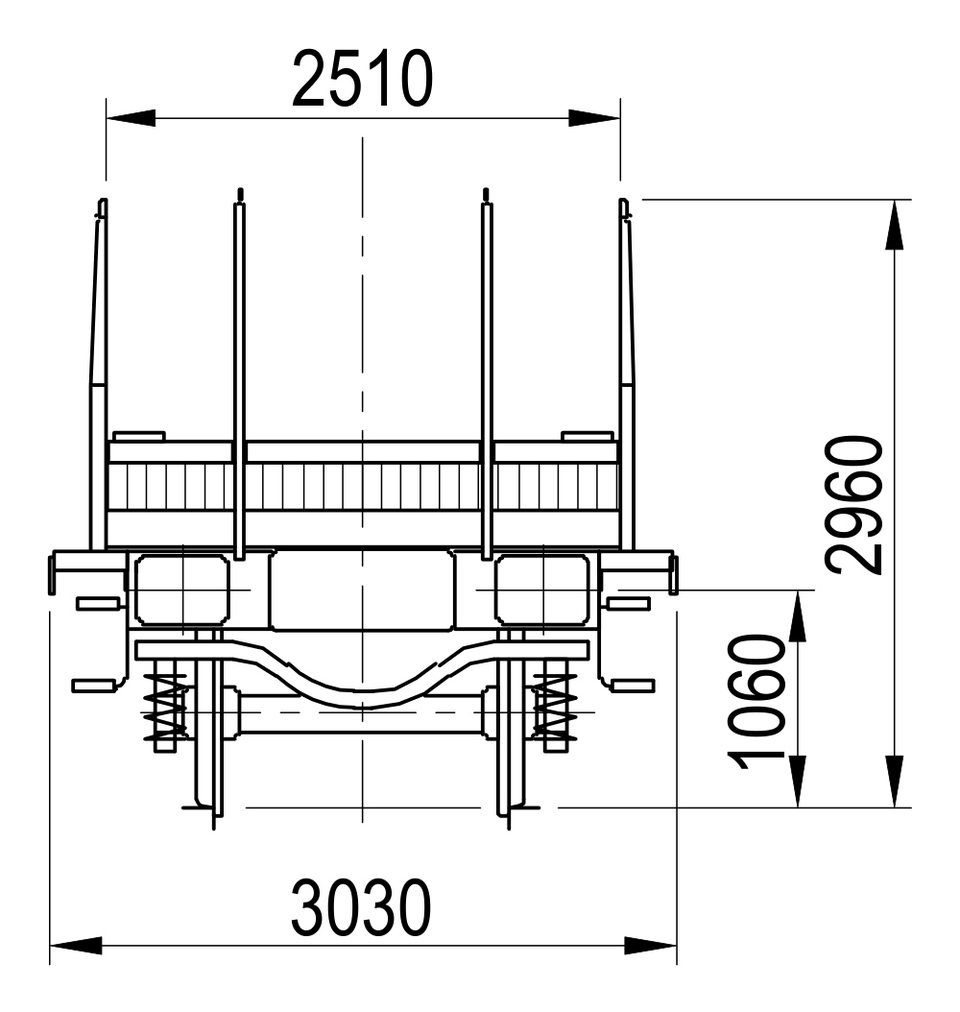

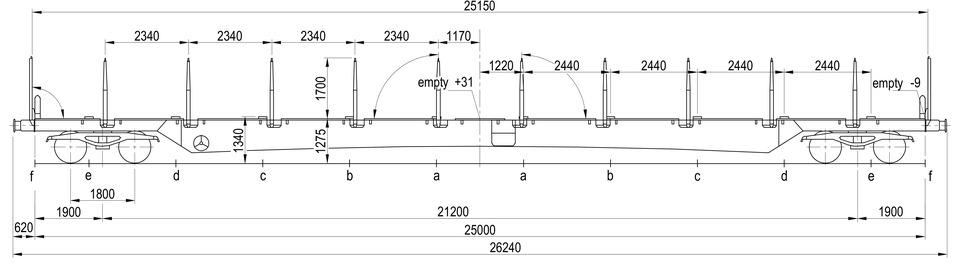

Specifications F43.251D
| Axle load | 22.5 t |
|---|---|
| Brake | KE-GP 2x 12“ |
| Brake block category | LL brake block |
| Clearance: Outer wheelsets | 23,100 mm |
| Drawgear & static tractive force | Split, 850 kN |
| Floor type | Wooden floor, thickness: 65 mm |
| Front wall | 2, inward folding |
| Load area | Approx. 63.1 m² |
| Load restraints | 10, folding, height of 65 mm |
| Loading height above top of rail, unloaded | approx. 1,293 mm |
| Loading length | Approx. 25,150 mm |
| Loading width | Approx. 2,510 mm |
| Min. curve radius | 75 m |
| Stanchions | 20 rotating stanchions, height of 1,700 mm; 4 plug-in front stanchions, height of 1,700 mm |
| Tare weight | Approx. 30.8 t |
