Rens | F41.185D
Flat wagon
- A very flexible car for allround use e.g. for the transportation of heavy goods, steel products and manufactured products.
- The wagon is equipped with stanchions and collapsible sidewalls.
Industry
Building materialsLoads
BallastWaste paperTechnical data

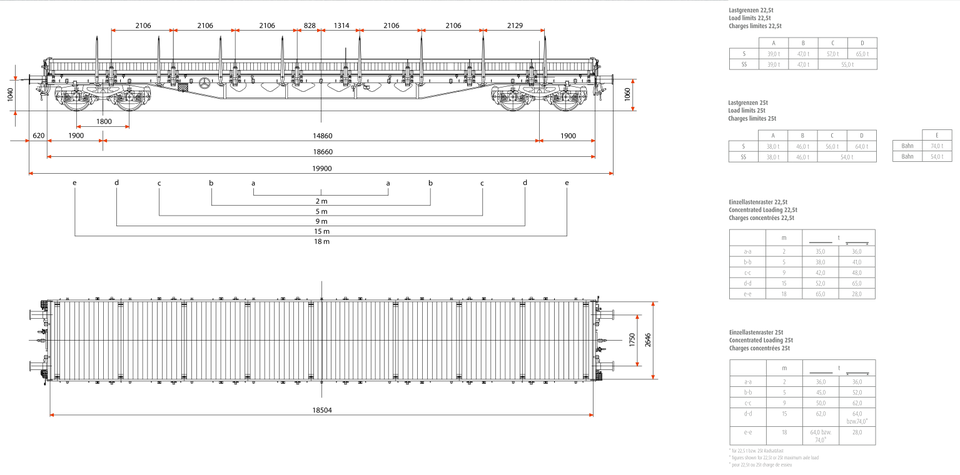

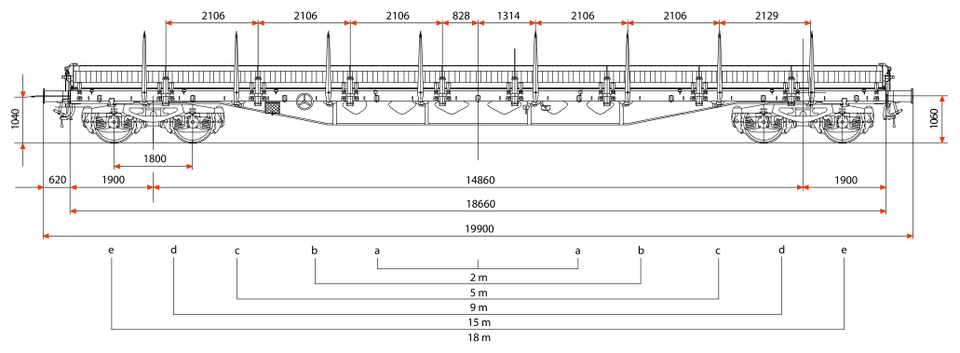

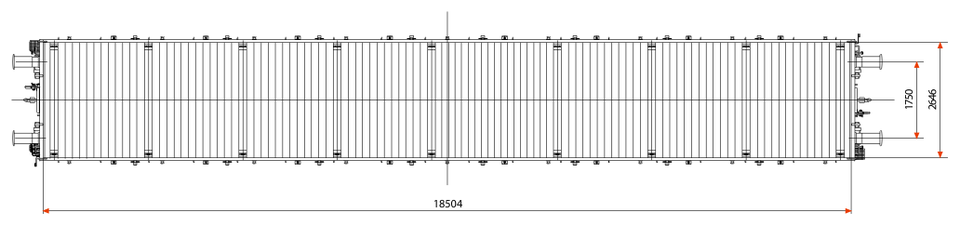

Specifications F41.185D
| Axle load | 22.5 t |
|---|---|
| Brake | CH-GP-A 2x16“/KE-GP 16“ |
| Brake block category | LL brake block |
| Clearance: Outer wheelsets | 16,660 mm |
| Drawgear & static tractive force | Split, 850 kN |
| Floor type | Wooden floor (larchwood, impregnated), 45 mm |
| Front wall | 2 |
| Load area | Approx. 49 m² |
| Loading height above top of rail, unloaded | Approx. 1,235 mm |
| Loading length | Approx. 18,504 mm |
| Loading width | Approx. 2,646 mm |
| Min. curve radius | 35 m |
| Side flaps | 18 |
| Stanchions | 16 |
| Tare weight | Approx. 25 t |
