Smmnps | F44.120E
Flat wagon
- Optimal solution on the market for the transport of hot steel slabs.
- Very light with a tare weight of only 20.8 t, equipped with bogies for 25 t axle-loadings at 100 km/h, carrying up to 79.2 t.
- The wagon is equipped with 4 load securing bolster beams.
- Can be loaded with slabs of different lengths and widths, loaded by crane with grabs or magnets. Special load securing bolster beams secure the load against sliding in lateral and longitudinal direction. The slabs can be loaded in hot or cold condition.
Industry
SteelLoads
SlabsTechnical data

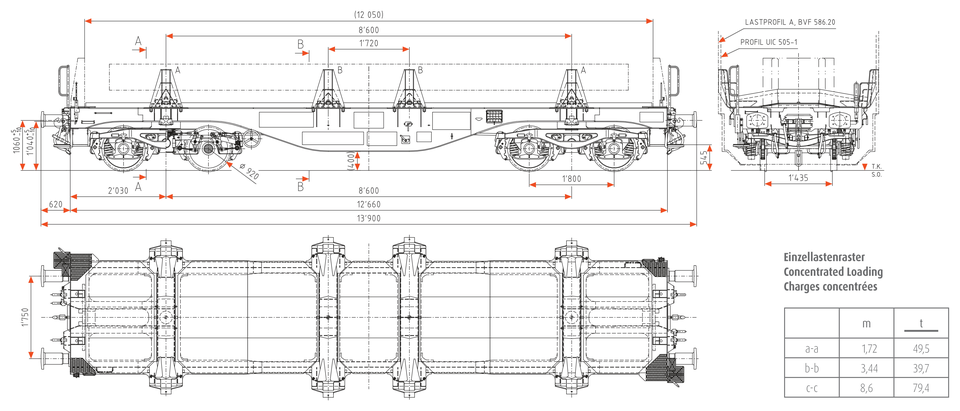

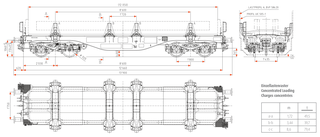

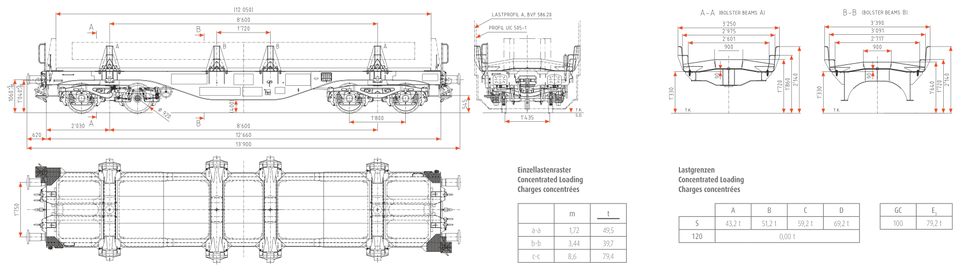

Specifications F44.120E
| Axle load | 25 t |
|---|---|
| Brake | KE-P, 2x Bgu 16“ |
| Brake block category | Gray cast iron |
| Clearance: Outer wheelsets | 10,400 mm |
| Drawgear & static tractive force | Split, reinforced, 1350 kN |
| Floor type | Steel floor |
| Loading height above top of rail, unloaded | 1,620 mm (stops B-B) |
| Loading length | Approx. 12,052 mm |

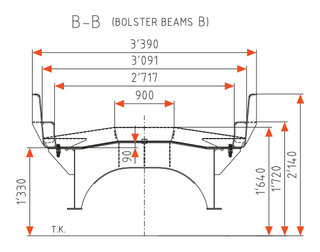

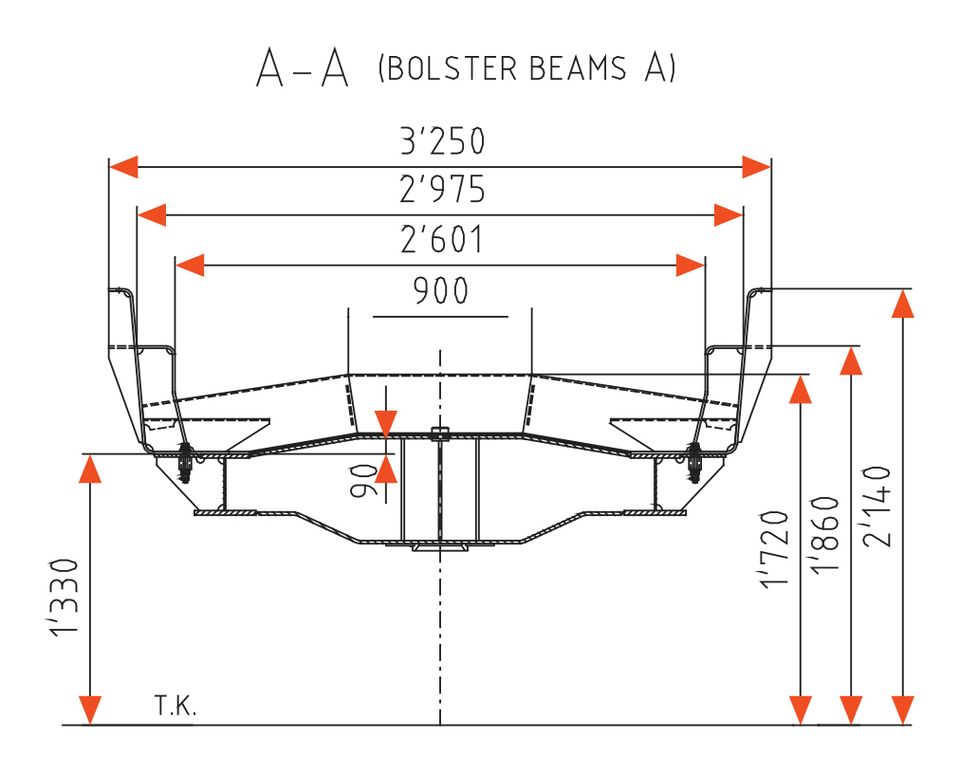

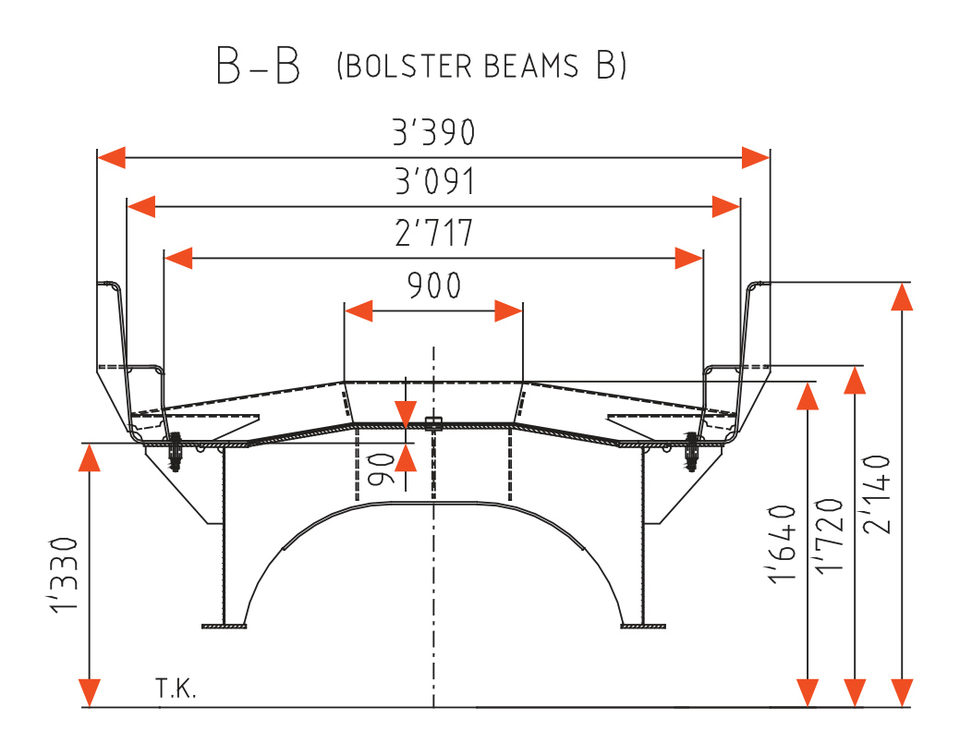

| Loading width Between lateral stops: A-A, | 2,975/2,601 mm; B-B, 3,091/2,717 mm |
| Min. curve radius | 75 m |
| Tare weight | Approx. 21 t |
