Sggrrs
Modular Freight Wagon
- The Sggrrs 2x40’ makes it possible to achieve more loading capacity per wagon thanks to its optimized tare weight.
- The combination of two lightweight wagon platforms and the lightest overall underframe on the market this wagon offers the maximum possible flexibility.
- This transport solution makes freight transport more flexible and efficient while increasing transport volumes.
Industry
SteelLoads
Flat steelLong steelRound steelSlabsTechnical data

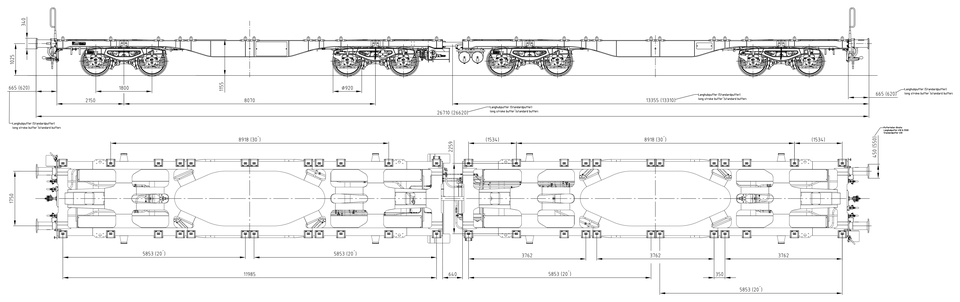

Specifications Sggrrs
| Axle load | 22.5 t |
|---|---|
| Brake | KE-GP-A |
| Brake block category | K |
| Clearance: outer wheelsets | 22,880 mm |
| Ferry boat capability | No |
| Loading height above top of rail, unloaded | 1,155 mm |
| Loading length | 2 x 12,370 mm |
| Loading length in feet | 2 x 40‘ (ft) |
| Loading width | 2,890 mm |
| Max. load | 2 x 75.15 t* |
| Max. speed | 100 km/h |
| Min. curve-radius | 75 m |
| Operational note | These wagons cannot go into operation without ballast plates or approved modules. In accordance with EN16235, a minimum weight of 4 tons per axle (total minimum tare weight of 32.0 tons) is required before the start of operation. |
| Tare weight | 2 x 14.85 t* |
| Total length over buffers | max. 26,710 mm |
| Wheel diameter | 920 mm |
