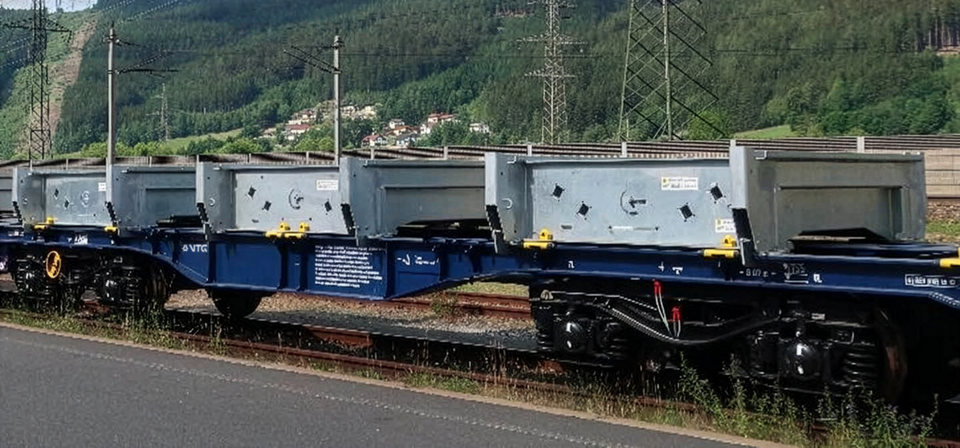

Sggrrs

ModuPallet Coils & Steel

  • The Sggrrs 2x40‘, with its volume optimised construction, allows VTG to load more on each wagon. The ModuPallet Coils and Steel is a perfect match and VTG’s modular solution for the transport of coils and other steel products.
  • Designed for the transport of coils, this pallet is also capable of transporting other steel products such as slabs and blooms, and is therefore universally applicable and able to generate a maximum of flexibility.

Industry

Steel

Loads

Steel coilsFlat steelLong steelRound steelSlabs

Technical data

Specifications Sggrrs

ModuPallet Coils & Steel – Loading height1,231 mm (other lengths possible)
ModuPallet Coils & Steel – Loading width2,500 mm
ModuPallet Coils & Steel – Number per wagonmax. 6
ModuPallet Coils & Steel – Tare weight per pallet1,600 kg
System – Axle load22.5 t
System – BrakeKE-GP-A
System – Brake block categoryK
System – Clearance: outer wheelsets22,880 mm
System – Ferry boat capabilityNo
System – Loading height above top of rail, unloaded1,155 mm
System – Loading length2 x 12,370 mm
System – Loading length in feet2 x 40‘ (ft)
System – Loading width2,890 mm
System – Max. load141.0 t (180.0 t)
System – Max. speed100 km/h
System – Min. curve-radius75 m
System – Sub-categoryModular car
System – Tare weight39.0 t
System – Total length over buffersmax. 26,710 mm
System – Wheel diameter920 mm
