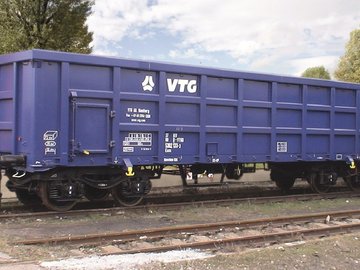

Branch: Disposal<br> Segment: Box wagons<br> Load: Energy products, Coal, Beets, Scrap
Light to heavy loads such as coal, ores, sand, scrap and wood waste.
Specially reinforced to meet the demands of scrap transportation.
Fastening hooks allow tarpaulins and wire mesh covers to be affixed.
|Tare weight||Approx. 25.7 t|
|Axle load||20 t|
|Clearance: outer wheelsets||10,800 mm|
|min. curve radius||75 m|
|Brake block category||LL brake block|
|Drawgear & static tractive force||Split, 850 kN|
|Nominal volume||Approx. 72 m³|
|Material, body||Carbon steel (S355J2+N)|
|Load area||Approx. 36 m²|
|Inner loading length||12,800 mm|
|Loading width, interior||2,800 mm|
|Wall thickness (sides)||8 mm|
|Wall thickness (ends)||10 mm|
|Floor thickness||10 mm|
|Cleaning doors||2 single doors (one on either side)|
Thickness = 8 mm
980 mm x 930 mm
|Fastening hooks||20 (outside/at top)|
