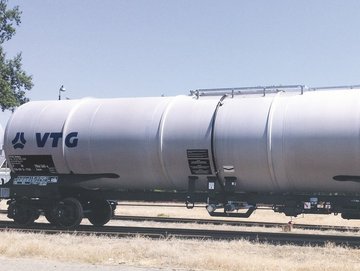

Branch: Chemicals<br> Segment: Stainless steel rail tank car<br> Load: Ethanol, Ultra-pure chemical products, Caustic soda lye, Phenol, Phosphoric acid
Technical specifications
Tare weight | approx. 22.7 t |
Axle load | 22.5 t |
Clearance: outer wheelsets | 13,760 mm |
Min. curve radius | 35 m |
Brake | KE-GP 12" |
Brake block category | K brake block |
Tank material | Stainless steel (1.4307) |
Nominal volume | approx. 92 m³ |
Forced ventilation | Mechanical, self-operating (linked to a bottom valve) |
Vapor return | Operated from bottom level on both sides, with pressure tight cap |
Tank code | L4BH |
Design temperature | -20 / +50°C |
Residue emptying | 0.5° slope angle and tank sump |
