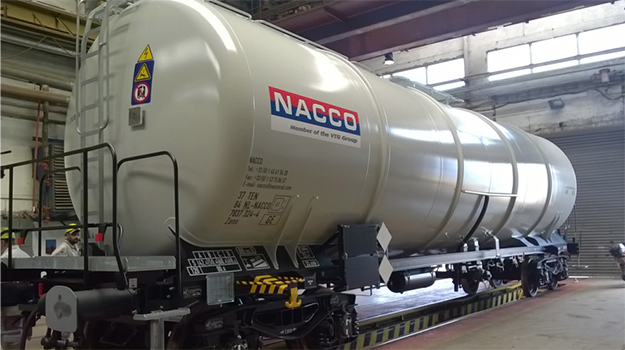

Branch: Mineral oil<br> Segment: White petroleum rail tank cars<br> Load: Acetone, Petrol, Biodiesel, Butanol, Diesel, Ethanol, Heptane, Hexane, JET A1, Methanol
Features
Optimized for the transportation of liquid goods with a density of 0.845 to 0,93 t/m³, such as petroleum middle distillates, biodiesel and sunflower oil. Can also be used to carry goods in the RID classes 6, 8 and 9.
Can be filled via the bottom discharge.
Top discharge can be fitted as an option.
The addition of a rising pipe and, where necessary, a coating can convert it to a chemical tank wagon to satisfy customers‘ individual and product-specific requirements on a flexible basis.
Technical details
| Tare weight | Approx. 21.4 t |
| Axle load | 22.5 t |
| Clearance: outer wheelsets | Ca. 11,900 mm |
| Brake | KE-GP-A 12“ |
| Brake block category | K brake block |
| Tank material | Carbon steel (S355J2+N) |
| Nominal volume | Approx. 88 m³ |
| Forced ventilation | Mechanical, self-operating (linked to bottom valve) |
| Vapour return | Operated from bottom level on both sides, with pressure tight cap |
| Tank code | L4BH |
| Design temperature | -25/+50°C |
| Residue emptying | 1.0° slope angle and tank sump |
