Branch: Intermodal<br> Segment: Pocket wagons<br> Load: ISO container, Swap bodies, Tank container, Swap container
Features

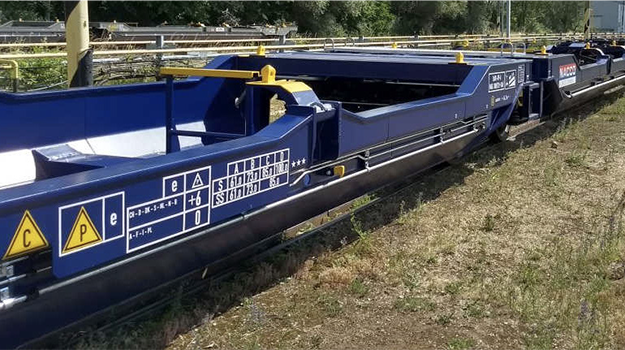

The multi-function wagon with a 2,700 mm wide pocket is excellent for mega trailer transport. The generous dimension and open construction of the lower area of the wagon accommodates mega trailers without the necessity to reposition any major trailer components. The wagon has a height-adjustable trailer hitch for greate loading and unloading efficiency. The pocket wagon can also be used for standard trailers.
Technical details
| Tare weight | Approx. 35 t |
| Max. load | 100 t |
| Axle load | 22.5 t |
| Wheel diameter | 920 mm |
| Total length over buffers | 34,200 mm |
| Clearance: Outer wheelsets | 30,200 mm |
| Brake | DK-GP-A |
| Brake block category | K brake block |
| Min. drivable turning radius | 150 m (in block train) |
| Max. speed | 120 km/h |
| Loading length | Max. 2x 15,761 mm or 4x 7,820 mm - swap bodies (C782) |
| Loading length in feet | 100 ft |
| Loading height above top of rail, unloaded | 270 mm for trailer 1,155 mm for swap bodies and containers |
| Pocket width | 2,700 mm |
| Loading width | 2,600 mm for Container |
| Ferry boat capability | 1°30' |
